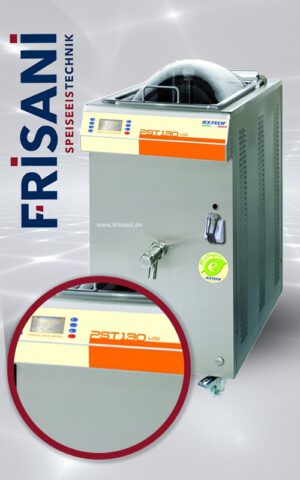

The new ICETECH LCD PASTEURIZATION APPARATUS have exceptional features:
LARGE LCD TOUCHSCREEN
for setting and monitoring all machine functions.
HEATING AND COOLING
with the “WATER BATH” system with glycol that reduces pasteurization times and for a very low consumption of electricity and water.
NEW STAINLESS STEEL TANK
with a capacity of up to 70 liters for the PST70 model and 130 liters for the PST130 model; oval shape with inclination of the forging bottom for complete removal of the product.
for pasteurization of the mixtures; including:
EMULSIFIER WITH INVERTER
All ice cream bases can be mixed and emulsified as desired, achieving homogeneity of fat particles, thus a creamier, softer, easier to portion and also easier to store in the ice cream display case.
INVERTER STIRRER SYSTEM
With the I.S.S. system, i.e. the mixer with inverter speed converter, it is possible to set different stirring speeds at the different temperatures, both manually and automatically.
HACCP CONTROL WITH “USB Key” SYSTEM
(on request): with a USB key, all the data of the pasteurizations of the last week can be downloaded and archived directly on your PC, never losing control of all the processing phases.
D.A.T. (Diagnostic Automatic Temperature)
The machine has an automatic control of the diagnostics of the temperature, always automatically controlling the temperature of your ice cream mixture at each stage of processing. In case of a sudden power failure and the subsequent return of the power supply, the system checks the temperature again and according to this temperature and the duration of the power failure, the machine repeats the entire pasteurization cycle if necessary.
with high resistance and completely transparent for better monitoring of the pasteurized mixture, also by visual control.
NEW ERGONOMIC STEM
made of stainless steel with non-slip carpet for placing the bucket or other containers to avoid placing them directly on the floor, which can lead to possible external contamination.
|Power min/max||min. 30 l
max. 70 l
|Current consumption||6,5 kW|
|Electrical properties||400 V / 50 Hz / 3 Ph|
|Cooling gas||R 404 A|
|Size||410 x 955 x 1080 mm|
